  3. ZLINE 46 in. DuraMount™ Wall Mount Range Hood Insert in Stainless Steel (683-46)
By ZLINE Kitchen and Bath

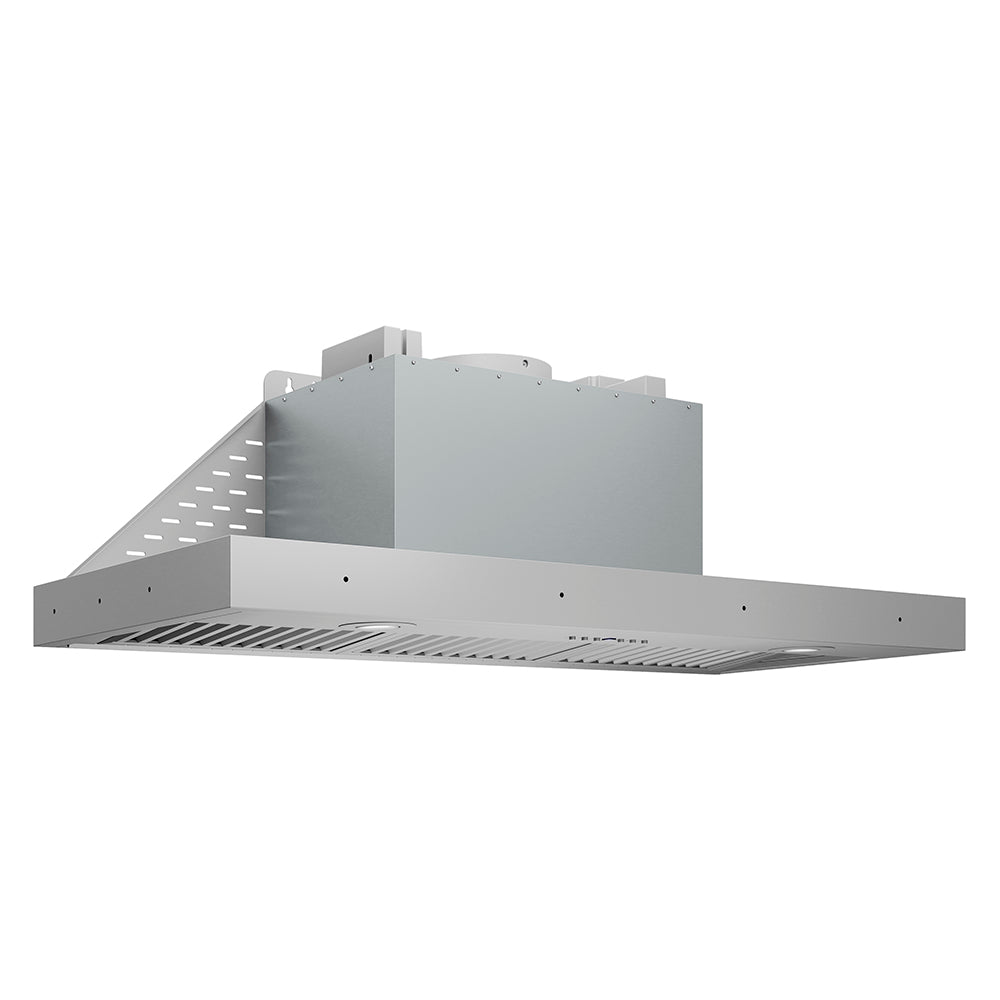

ZLINE 46 in. DuraMount™ Wall Mount Range Hood Insert in Stainless Steel (683-46)

$1,099.99
$1,099.99
Shipping calculated at checkout.
Availability: Out of stock
ZLINE 46 in. DuraMount™ Wall Mount Range Hood Insert in Stainless Steel (683-46)
$1,099.99
$1,099.99

The ZLINE 46 in. DuraMount™ Wall Mount Range Hood Insert in Stainless Steel (683-46) combines powerful ventilation with a patented mounting design that brings attainable luxury to any custom kitchen layout. Featuring reinforced triangle supports with staggered, overlapping mounting points, DuraMount™ is purposefully designed to hit studs in standard 16-inch spacing, ensuring a stud-stabilized fit every time—without additional bracing—that delivers precision-engineered alignment and professional performance designed for real homes.

This product contains many unique features such as:

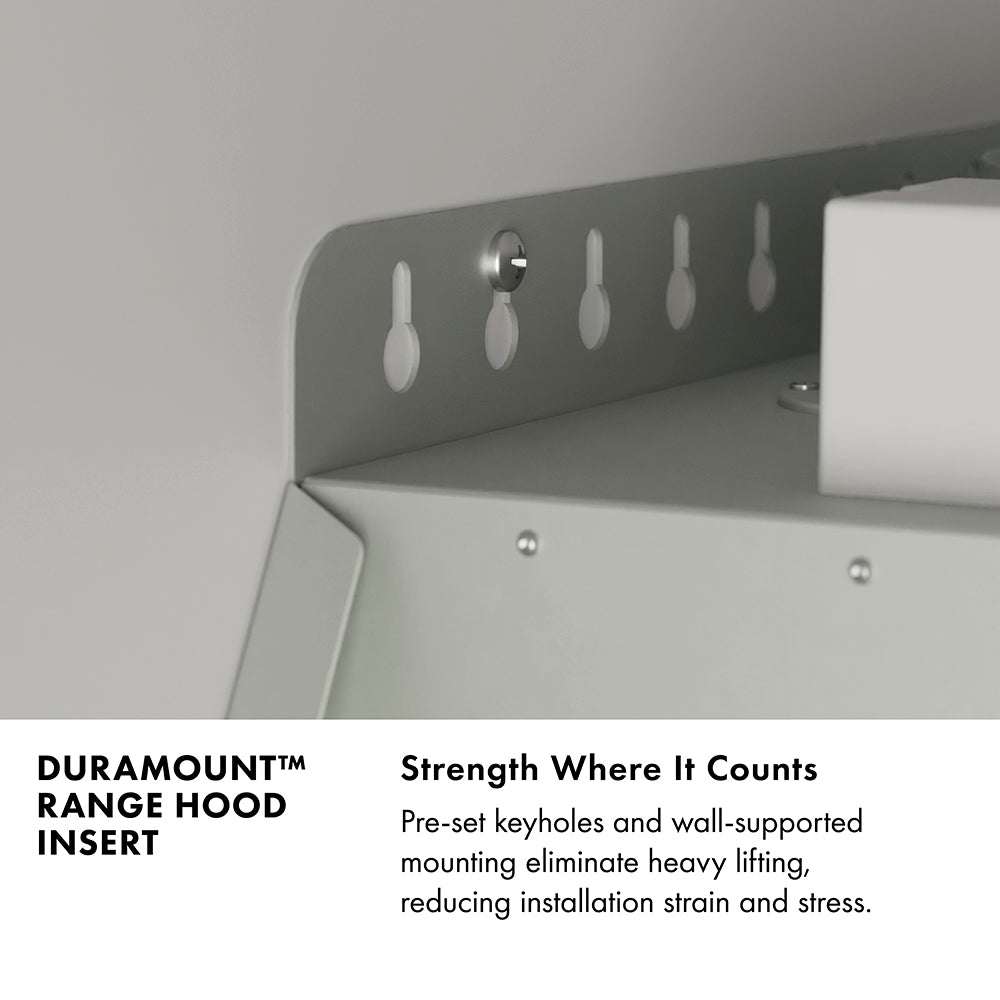

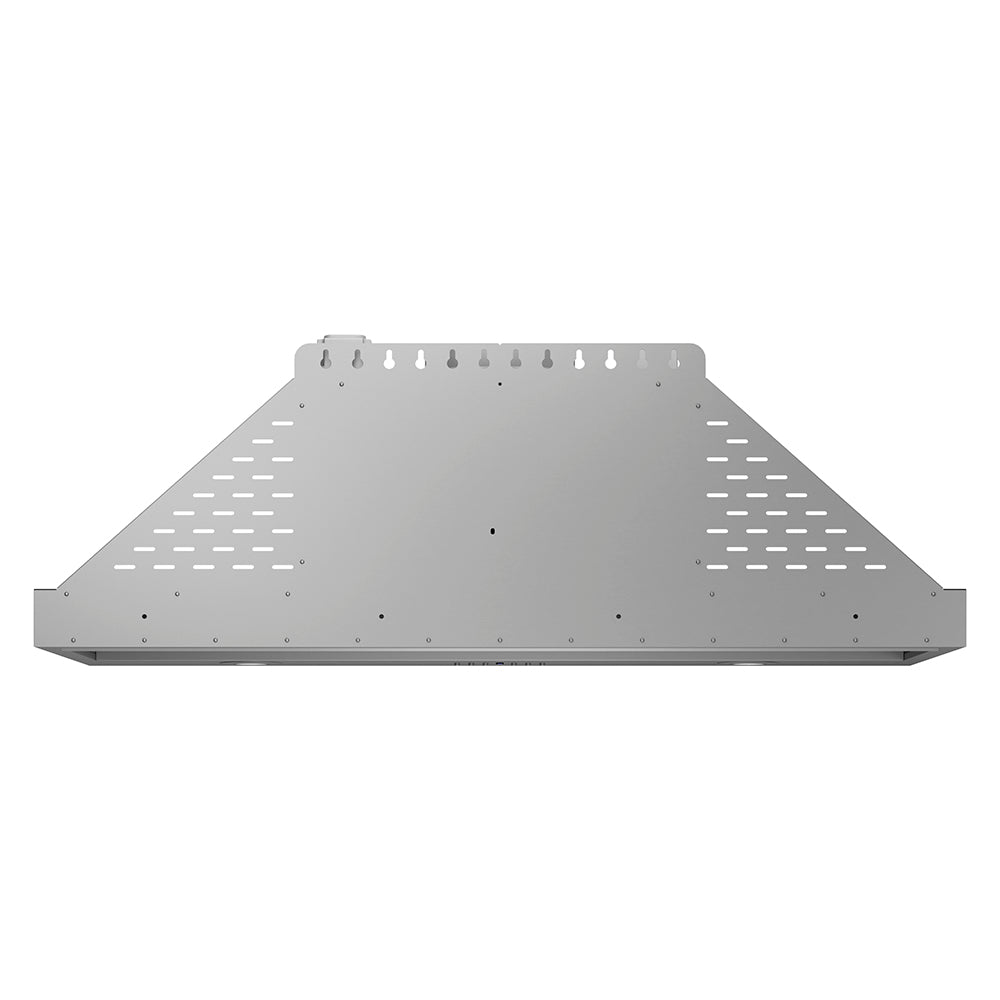

  • Patented Mounting Design - Mounting screws are leveled first, then the insert hangs directly onto pre-set keyholes, reducing the need for heavy lifting and enabling a straightforward installation process
  • Multi-Point Flexibility - Designed for a 48-inch custom hood, a multi-point perimeter keyhole pattern offers numerous options, making it easy to fasten to studs or anchors without complex modifications or additional bracing
  • Two Decades of Trusted Power - Built on 20 years of ZLINE engineering expertise, the 683-46 DuraMount™ insert features dual high-velocity motors backed by the industry’s first-ever lifetime motor warranty guarantee, bringing a new level of proven performance to custom kitchen ventilation

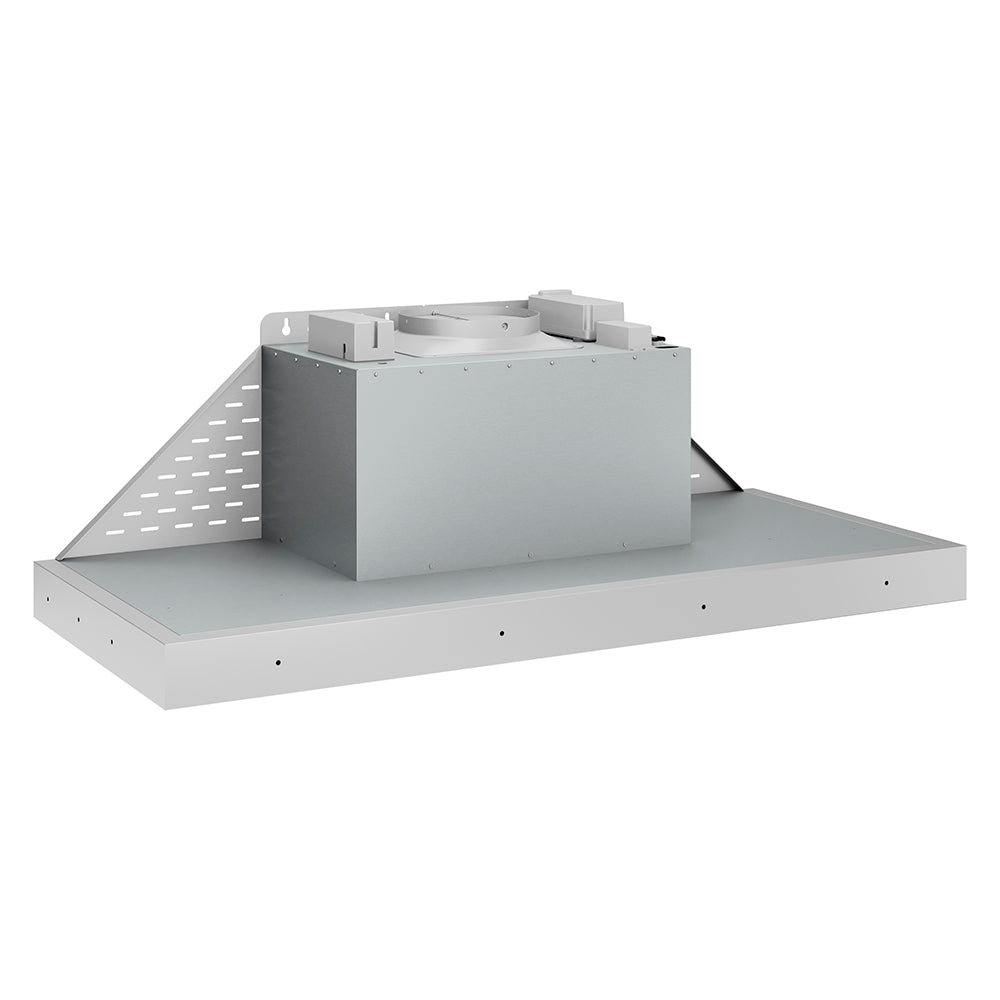

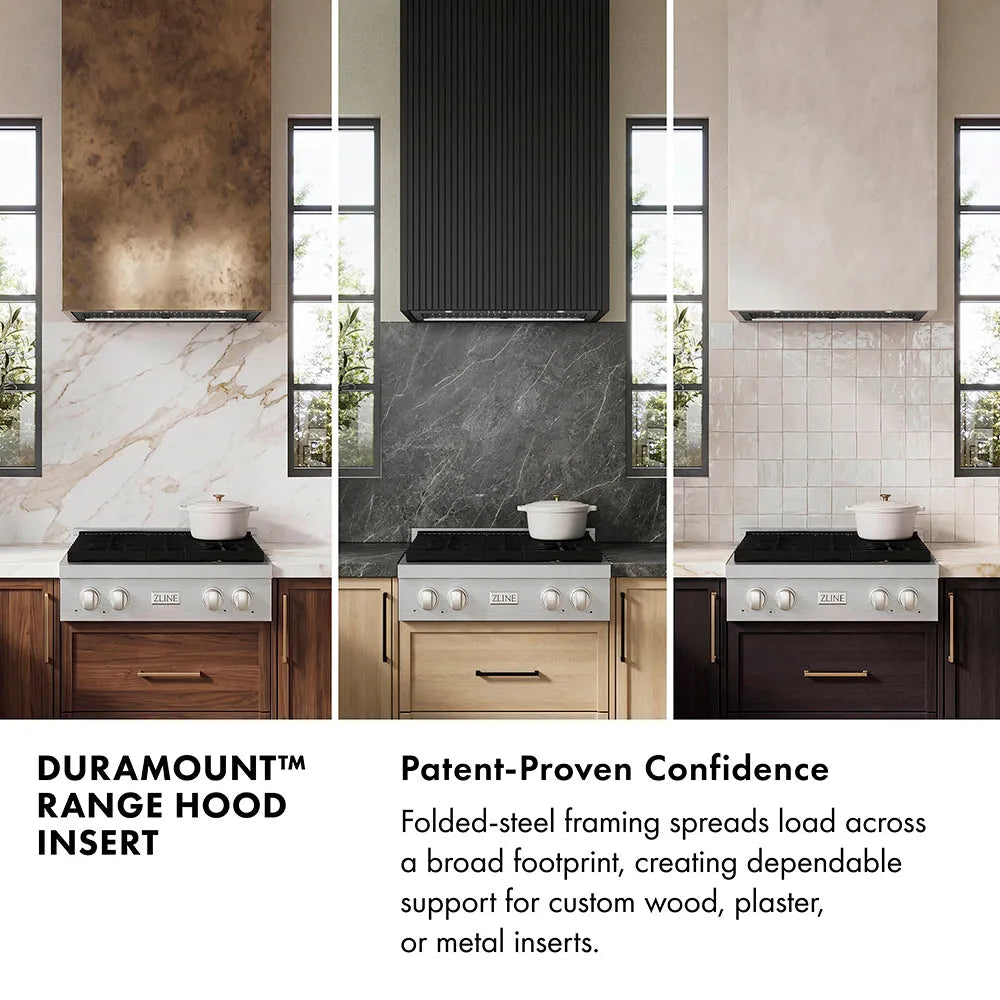

  • Full-Frame Support - A rigid, folded-steel DuraMount™ frame distributes weight across a broad footprint, creating a strong foundation for wood, plaster, or metal custom shells
  • Remodel-Ready Fit - Manufactured to align with standard 16 in. on-center framing and irregular wall structures, ensuring dependable installs even in remodels or tight retrofit conditions
  • Anchor-Friendly Installation - When studs aren’t available, the DuraMount™ system supports secure installation using included anchors or the multi-track side plate for confident off-center mounting
  • Corrosion-Resistant Stainless Steel - Manufactured with brushed 430-grade stainless steel, which contains rust and corrosion-resistant properties to ensure a durable insert that will last for years to come

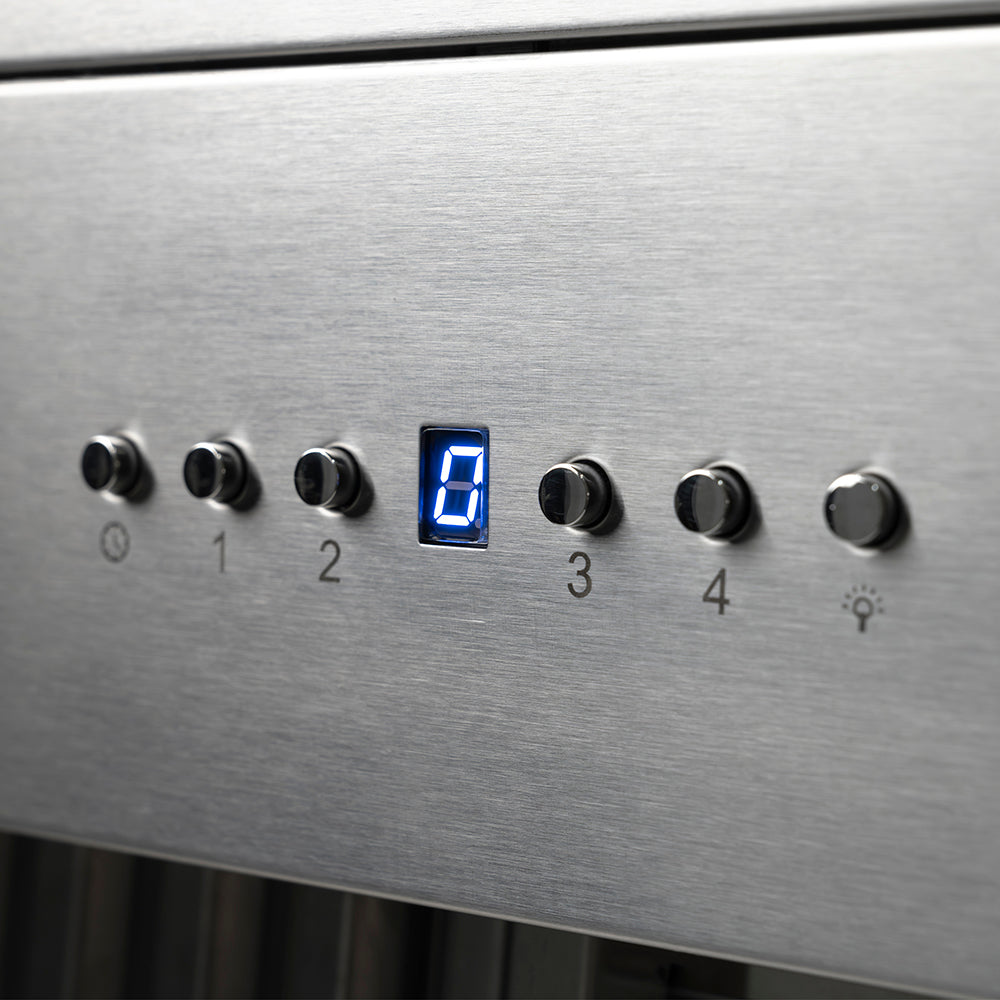

  • Convenient Control Panel - Easy-to-use push button controls let you easily adjust fan speeds and lighting options
  • Powerful Ventilation - The highest speed setting of 700 CFM air flow efficiently moves large amounts of air away from your cooking area

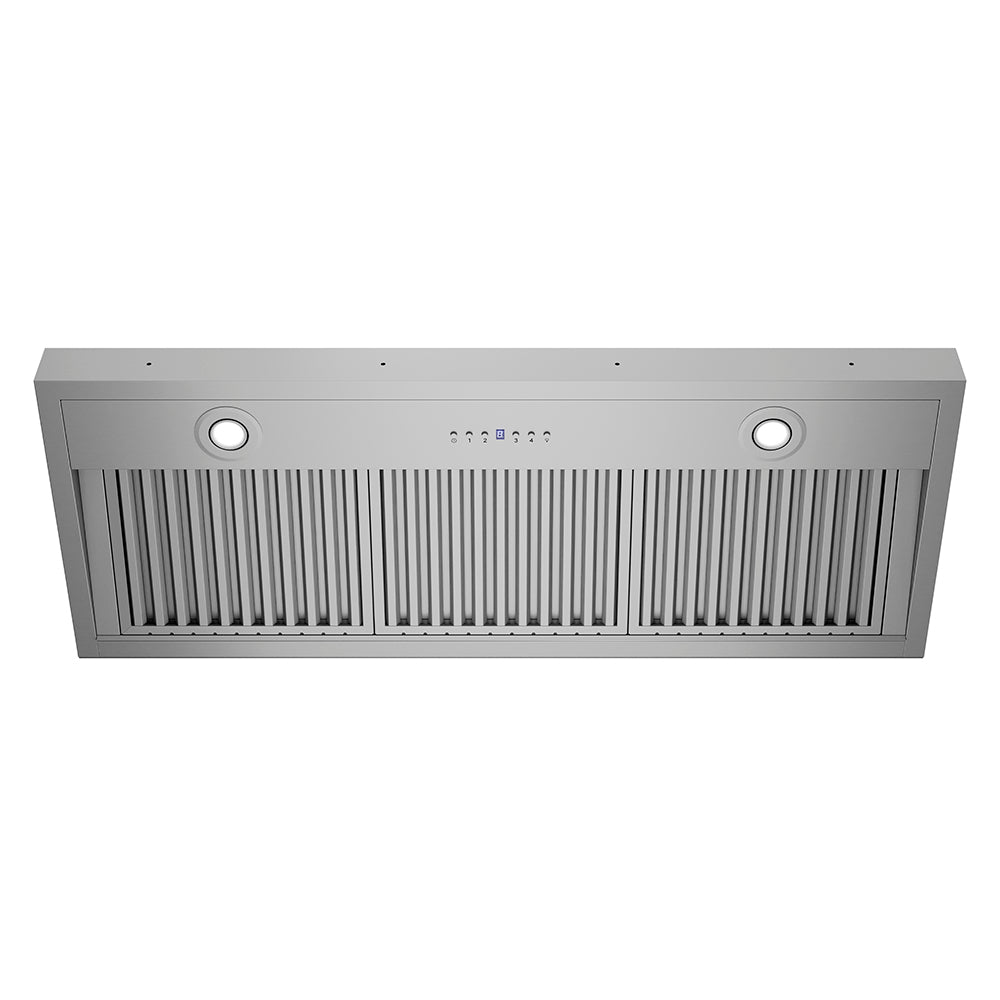

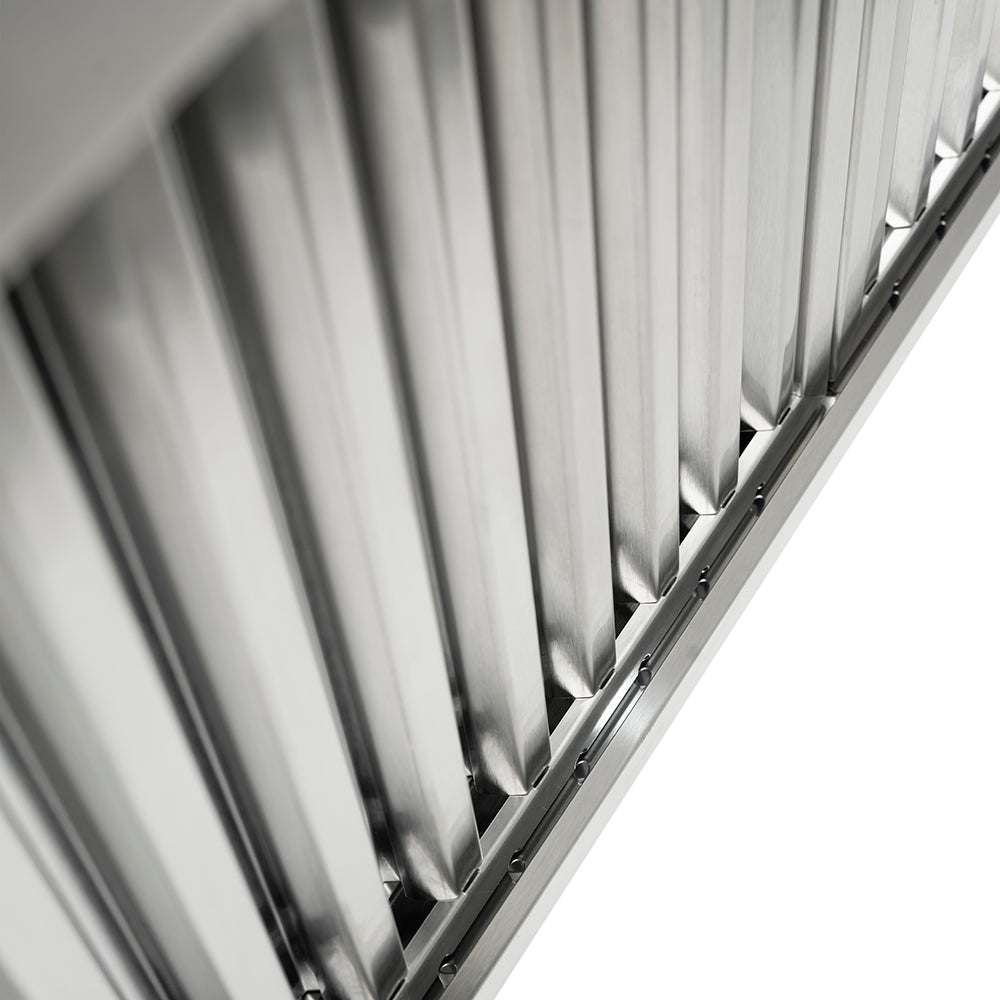

  • Minimal Cleaning - This range hood insert includes dishwasher-safe stainless steel baffle filters that are simple to clean

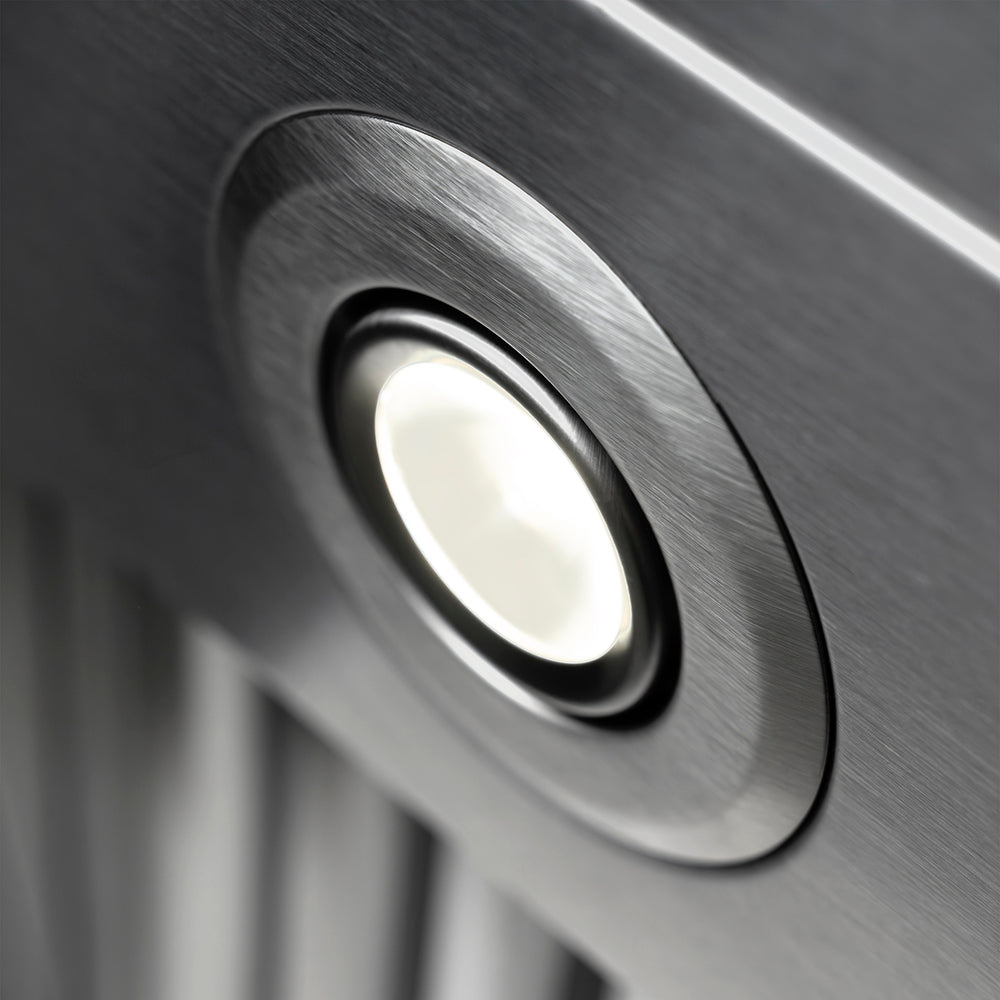

  • Adjustable LED Lighting - This range hood insert comes equipped with 2 energy-efficient adjustable LED lights to illuminate the cooking surface below
  • Standard Ducting - ZLINE hood inserts are designed to fit standard (circular) ductwork for simple installation; this hood includes a transition piece for 8 in. diameter ducting
  • External Damper Required - The included transition piece does not come with a damper; installers must ensure a proper external damper is installed at the exit point of ducting
  • Electrical Requirements - Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system
  • Manufacturer Warranty - 3-year parts-only warranty for the range hood, along with a lifetime warranty for the motor

Specifications

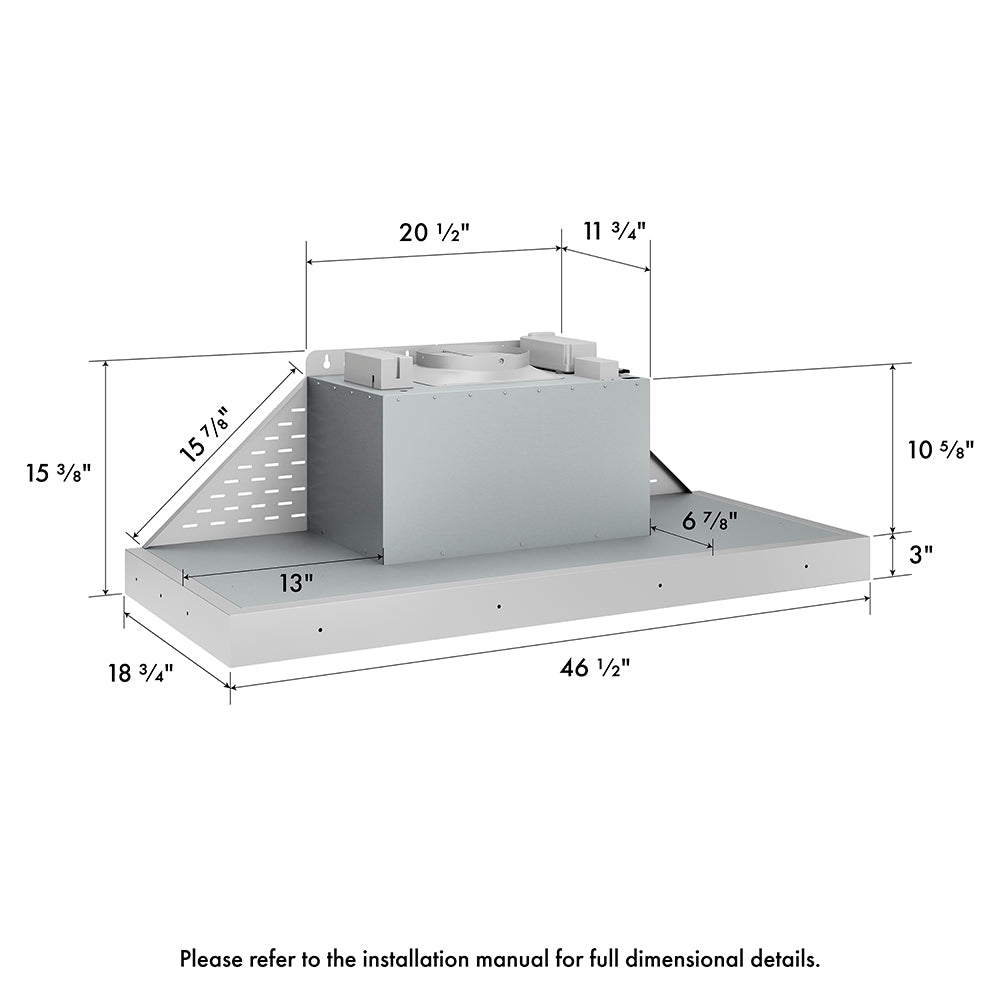

Dimensions  46.50 in. W x 18.75 in. D x 15.38 in. H
Cut Out Dimensions  46.50 in. W x 18.75 in. D x 15.38 in. H
Max CFM  700
Duct Size  8 in.
Outdoor Approved (Y/N)  No
Convertible from Ducted to Recirculating (Y/N)  No
Remote Blower (Y/N)  No
Electrical Requirements (Voltage, Amps, Watts)  110V/3.2A/346W
Sones  1.1-5.3
Lighting (# of Lights)  2
Mount Type  Insert
Motor  High Performance 500 CFM/4-Speed Motor
Material  Stainless Steel
Speeds  4
Filters  Stainless Steel Baffle Filters (Dishwasher-safe)
Certifications  ETL Listed, CEC Listed
Warranty  3 Year Parts
 Life-Time Motor Warranty
User Manual  Click Here to View on ZLINE's Website
